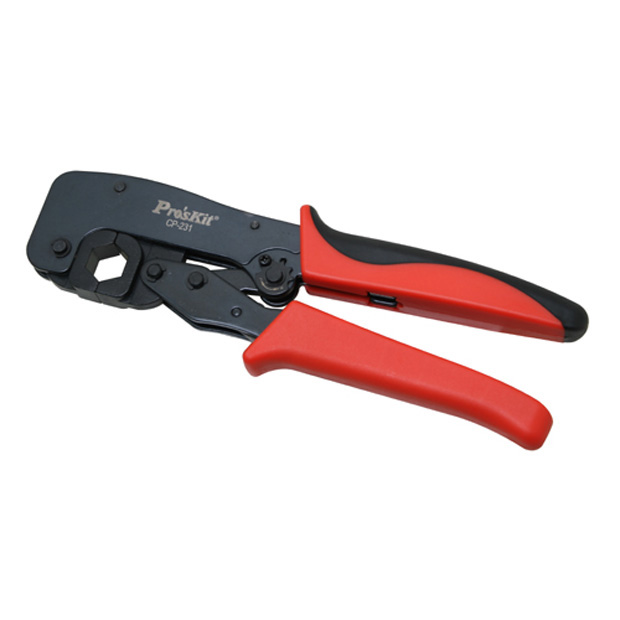

LMR600 Ratcheted Crimp ToolLMR600 Ratcheted Crimp Tool
Eclipse Tools CP-231

Features:

  • Repeatable crimpaction for consistent, high quality connections
  • Built-in ratchet release
  • Ratchet action enables single hand use
  • Quick release safety latch
  • Adjustable crimping pressure and ratchet release lever
  • Ergonomic handle design provides comfortable and non-slip grip

Specifications:

  • Material: Medium carbon, hardened steel
  • Length: 9" (228 mm)
  • Die Size: 0.61" (15.5mm)
  • Frame: Black oxide finish

Click Here for larger picture

Price:  $43.49


Coax Crimping Kit
Eclipse Model 500-001

This kit crimps the most popular coax connections and includes:

  • Crimp frame and 5-die sets
  • Cable cutter (up to 0.40" dia.)
  • Rotary coax stripper (2 blade model)
  • Phillips screwdriver
  • Carry case

Click Here For Larger Picture

Price:  $115.37

Coax Crimping Kit


BNC, TNC, HDTV Connectors on true 75 Ohm CableBNC, TNC, HDTV Connectors on true 75 Ohm Cable
Ratcheted Crimper
Eclipse # 300-158

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • Crimp Sizes: .255, .278, .178, .068, .042

Click Here for Die Only P/N 300-157
Click Here For Larger Picture

Price:  $35.08


BNC,TNC and Mini-UHF on RG58 Coax
Ratcheted Crimper
With 5 Cavity Die Set
Eclipse # 300-003

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • BNC, TNC, Mini-UHF, RG58, 141, 142, 303, 400, 59, 62, 210, Belden 8279, 8281, 9231, 9141, RG-6, 212,222,304.

Crimp Sizes:

  • .324 .255 .213 .100 .068

Click Here for Die Only P/N 300-038


Price:  $35.08

BNC,TNC and Mini-UHF on RG58 Coax


BNC,TNC on RG58,59,62BNC,TNC on RG58,59,62
Ratcheted Crimper
Eclipse # 300-008

Red Handle Solar Series Crimper includes die.

  • For RG58, RG59 and RG 62AU
  • Crimp Sizes: .255, .213 and .068
  • 8" Red Solar Series Frame
  • Interchangeable die sets within the Solar Series


Click Here For Larger Picture

Price:  $31.67


BNC,TNC & N on RG-8, 11, 213, 216
Ratcheted Crimper
Eclipse # 300-023

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • RG8, RG11, RG213, RG216 BNC, TNC and N Series Connectors

Crimp Sizes:

  • .429 .100 .080

Click Here for Die Only P/N 300-049




Price:  $35.08

BNC,TNC & N on RG-8, 11, 213, 216


BNC,TNC 3 Piece Connectors on RG-58, 59, 62AUBNC,TNC 3 Piece Connectors on RG-58, 59, 62AU
Ratcheted Crimper
Eclipse # 300-019

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp

RG-58, RG-59 and 62 AU, BNC and TNC 3-piece connectors.

Crimp Sizes:

  • .255 .215 .068

Click Here for Die Only P/N 300-045


Price:  $35.08


BNC on Thinnet RG58, RG174
Both 50 & 75 Ohm Center Pin
Ratched Crimper - Eclipse # 300-021

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • ATT 735 (A), RG58 and RG174 cable groups both 50 and 75 Ohm center pins (Thinnet)

Crimp Sizes:

  • .215 .178 .068 .042

Click Here for Die Only P/N 300-047


Price:  $35.08

BNC on Thinnet RG58, RG174


CATV  "F" Ratcheted Crimper for RG-59 / RG-6 and RG-6 Quad CATV "F" Ratcheted Crimper for RG-59 / RG-6 and RG-6 Quad
Eclipse # 300-007

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • CATV "F" connectors RG-59, RG-6 and RG-6 Quad

Crimp Sizes:

  • .350 .320 .255

Click Here for Die Only P/N 300-041


Price:  $35.08


CATV "F" Connector Crimping Tool
Philmore WS17

For a tight, permanent crimp, this ferrule tool does the proper job every time. Two slots are provided for RG59/U and RG58/U


Price:  $4.39

CATV "F" Connector Crimping Tool


CATV "F" Connector Crimping ToolCATV "F" Connector Crimping Tool
For RG-6, RG-59 and RG-11
GC Waldom 12-450

Designed for coaxial fittings on RG-59, RG-6 and RG-11 coaxial cable. The compound action and heavy-cushioned handles makes crimping effortless. Made of tempered steel. 8" long.


Price:  $7.49


Crimper, Ratcheted, Coax RG-174, Mini 59 .178, .128, .068
Eclipse # 300-024

This crimper has the new shaped green and black Lunar series handle that is softer and more comfortable than prior designs. The ratcheted handle features a pressure adjustment for actuator force.

Die sets can be quickly changed for different applications (see Lunar die sets), and are compatible with many name brands. The die set that comes with this crimper will crimp the following:

  • RG174 and small cable connectors

Crimp Sizes:

  • .178, .128, .068, .051, .078, .042

Click Here for Die Only P/N 300-050
Click Here for Die Image



Price:  $35.08

Crimper, Ratcheted, Coax RG-174, Mini 59 .178, .128, .068

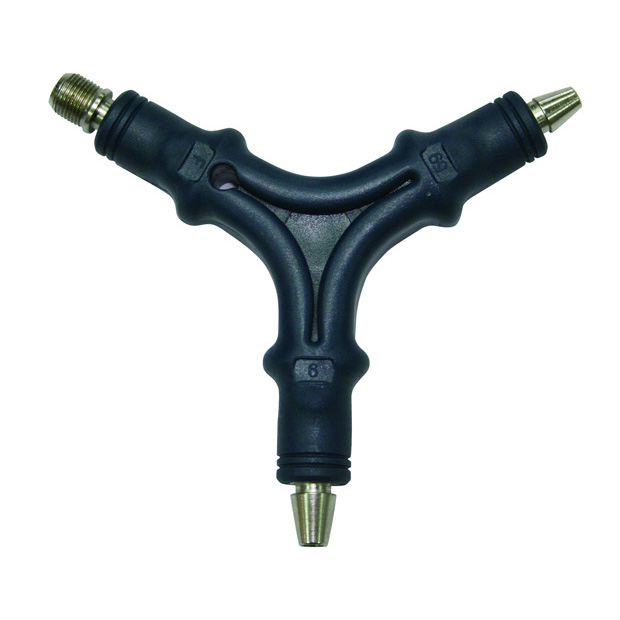

Coax Flaring ToolCoax Flaring Tool
Eclipse # MS-3207

One end of this tool is for flaring the braid and the other for screwing on a twist-on F connector to the cable.

  • Length: 4.3 x 2.4 x 0.4" (110 x 60 x 9.5mm)
  • Material: 12L14
  • Fnish: Nickel Plating

Click Here for Larger Picture

Price:  $6.96

OUT OF STOCK
